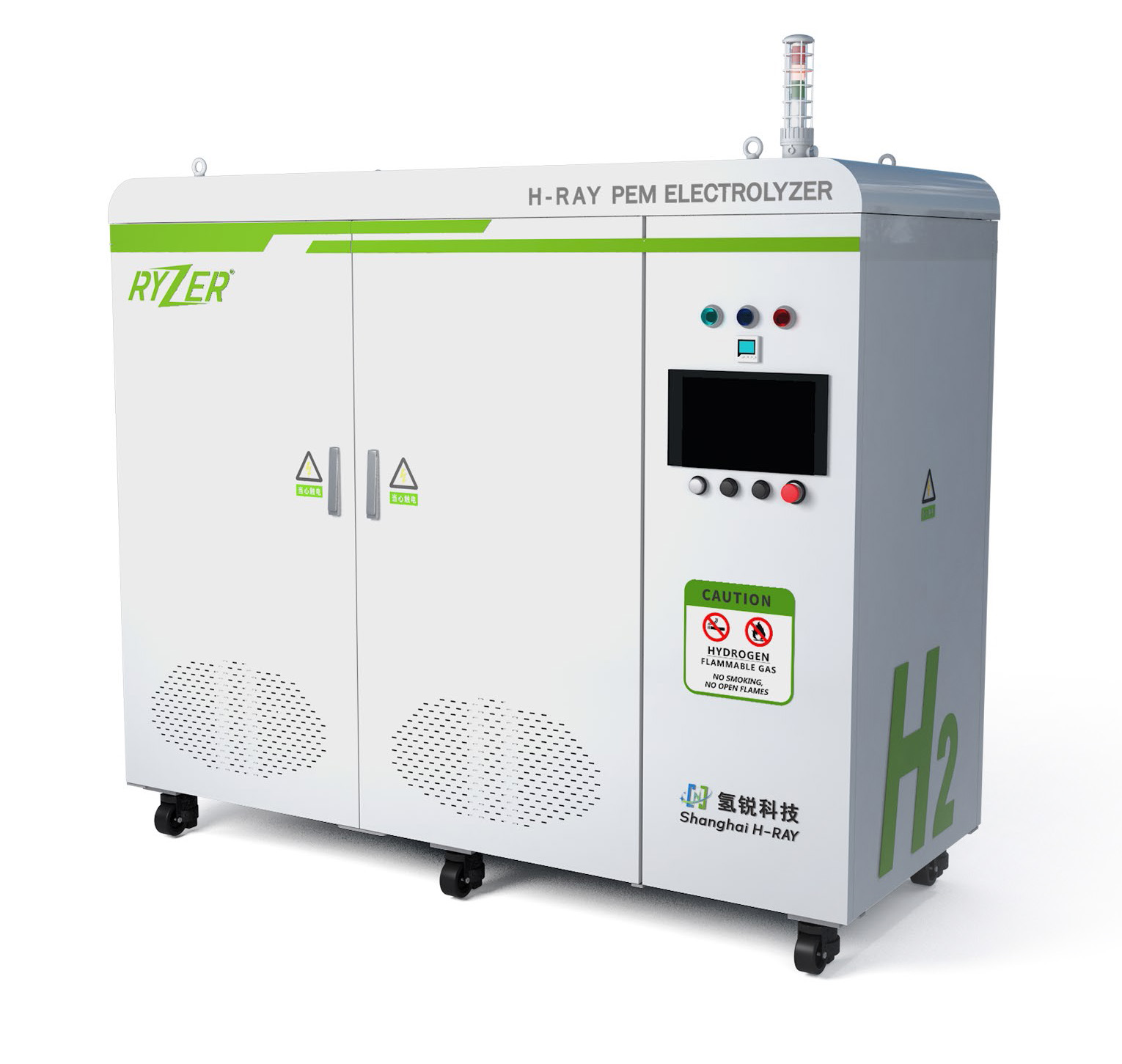

Type 20 Cabinet System
- Modular design, customizable combination.
- Standardized design, high reliability of equipment operation.
- High integration, small footprint.
Parameters H₂ Production 5~20 Nm³H₂/h（Optional） AC Power Consumption < 4.5 kWh/Nm*H₂ Operation Temp. 65±5℃ Ambient Temp. 5～40℃ Hydrogen Purity ≥99.999% H₂ Outlet Pressure ≤ 3 MPa Cold / Warm Startup Time ≤ 20 min / 3s Operating Range 10% ~ 120% Design Life ≥ 80,000 h H₂O flow rate ≥10 MΩcm and 1 m3/h (Adjustable) Size (Length x Width × Height) 1750 x 1300 x 2200 (mm) Weight < 1500kg Warranty (Rated Working Condition) 1 Year (Stack 2 Years) -

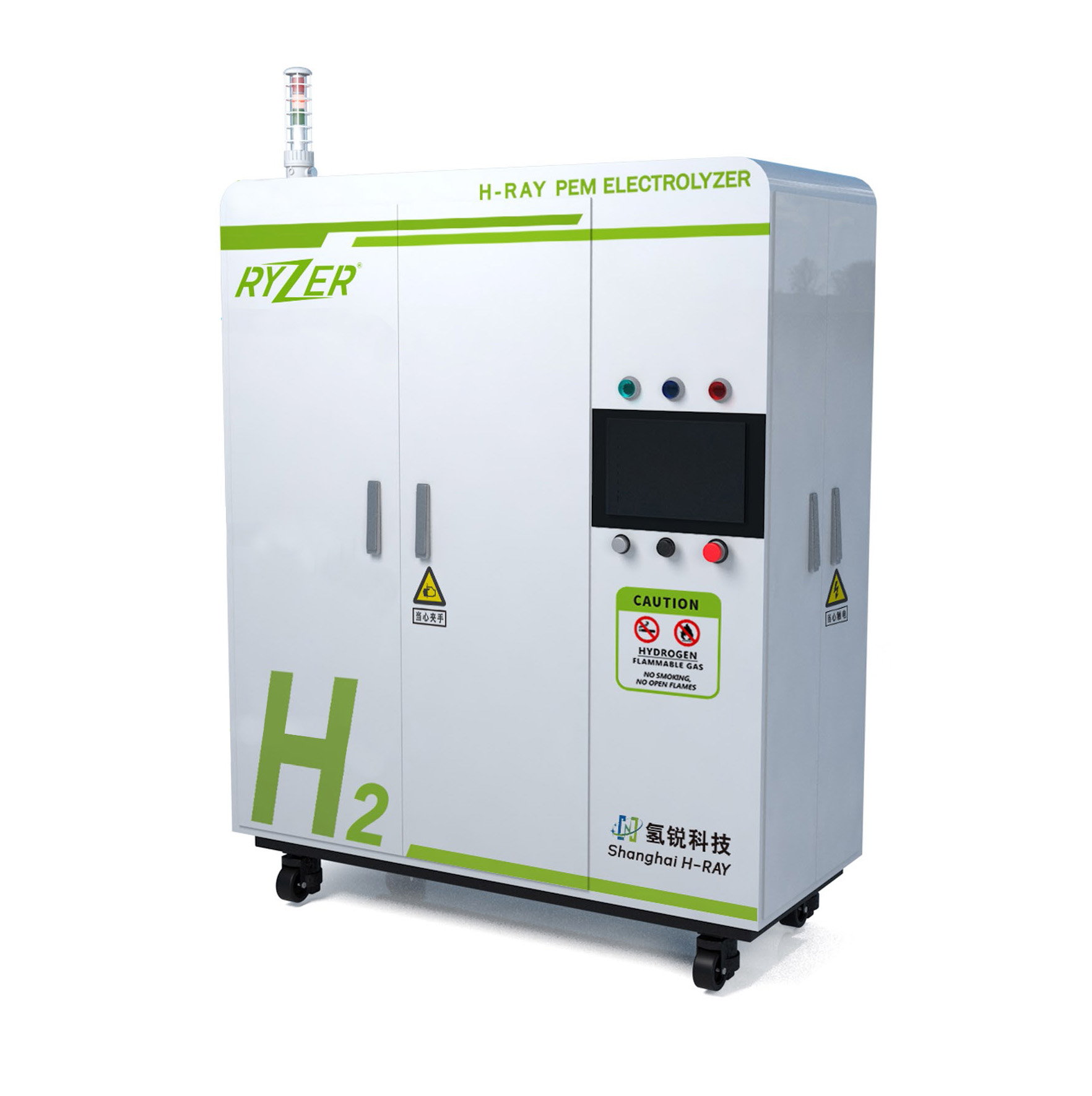

3-5 Nm³/h Integrated Series High-Purity Hydrogen Gas Cabinet System
- Explosion-proof design, enhancing the system's safety level
- Explosion-proof screens, explosion-proof instruments, and high-automation control systems
- Modular design, high system integration, and compact space arrangement
Product Specifications Product Model RYZER-3CMH-1.6-CAB RYZER-5CMH-1.6-CAB Electrolyzer Rated Energy Consumption ≤4.1 kWh/Nm³H₂ System Rated Energy Consumption ≤4.8 kWh/Nm³H₂ Operating Temperature 65±5℃ Ambient Temperature 5～40℃ Hydrogen Purity ≥99.999% Hydrogen Side Pressure ≤ 1.6 MPa（Differential Pressure Type） Oxygen Side Pressure Atmospheric Pressure (Optional) Cold/Hot Start Time ≤ 20 minutes / 5 seconds Adaptation Range for Fluctuations 10% ~ 110%（Optional） Design Service Life ≥ 80,000 Hours Feed Water Quality and Flow ≥10 MΩcm（≤0.1 us/cm） Recirculating Water Flow 0.3m³/h（Adjustable） 0.8m³/h（Adjustable） Dimensions（mm） 1250x1000x2000 Weight <200kg <500kg -
10-15 Nm³/h Integrated Series High-Purity Hydrogen Gas Cabinet System
- Low energy consumption, long service life, significantly reduced maintenance and operation costs
- Modular design with high integration of the entire system
- Automated, maintenance-free, unattended operation
Product Specifications Product Model RYZER-10CMH-1.6-CAB RYZER-15CMH-1.6-CAB Electrolyzer Rated Energy Consumption ≤4.1 kWh/Nm³H₂ System Rated Energy Consumption ≤4.8 kWh/Nm³H₂ Operating Temperature 65±5℃ Ambient Temperature 5～40℃ Hydrogen Purity ≥99.999% Hydrogen Side Pressure ≤ 1.6 MPa（Differential Pressure Type） Oxygen Side Pressure Atmospheric Pressure (Optional) Cold/Hot Start Time ≤ 20 minutes / 5 seconds Adaptation Range for Fluctuations 10% ~ 110%（Optional） Design Service Life ≥ 80,000 Hours Feed Water Quality and Flow ≥10 MΩcm（≤0.1 us/cm） Recirculating Water Flow 1.5m³/h（Adjustable） 1.8m³/h（Adjustable） Dimensions（mm） 1750x1350x2200 Weight <800kg <1000kg
